Solar Power Off Grid Inverter 24v 48v 3kw 5kva 6000w 10kw Hybrid

Place of Origin China
Brand Name SUNPOK
Certification CE MSDS UN38.3
Model Number MPS-5500H
Minimum Order Quantity 1 Unit
Price USD 454 /Pcs
Packaging Details Carton
Delivery Time 5-10 Day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Unit Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 230V 5Kw 48V Off Grid Inverter Rated Power 5KW
Output Waveform Prue Sine Wave Display LCD
Battery Voltage 48V Mounting Type Montita Muro
Warranty 2 Years OEM & ODM Avaiable
Input Voltage Dc 48 V Output Voltage Ac 220 V
Highlight

48v Solar Power Off Grid Inverter

,

10kw Hybrid Off Grid Inverter

Leave a Message
Product Description

Solar Power Off Grid Inverter 24v 48v 3kw 5kva 6000w 10kw Hybrid
Choosing the Right Off-Grid Inverter for Your Solar System - SUNPOK Home Solar
Are you interested in powering your home with solar energy? Sunpok energy and Home Solar Hub have the perfect solution for you!

Our Sunpok energy systems are the ideal solution for homes that are looking to move away from relying on grid energy and create their own power system. With our systems, you’ll be able to generate your own power, reduce your energy costs and become more self-sufficient.

And when it comes to choosing the right off-grid inverter for your solar system, our Home Solar Hub guide is the ultimate one-stop resource for all your solar needs. The guide features detailed instructions for selecting the correct system for your home, complete with diagrams and diagrams for easy understanding. Plus, you’ll receive free expert advice to help you choose the best system for your needs.

So, don’t get left in the dark—with Sunpok Energy and Home Solar Hub, you’ll be able to start enjoying the benefits of solar power today. With our easy-to-install systems, you’ll be able to generate your own power, reduce your energy costs and become more self-sufficient. Make the switch to Sunpok Energy and Home Solar Hub and enjoy the benefits of clean, renewable energy.


Solar Power Off Grid Inverter 24v 48v 3kw 5kva 6000w 10kw Hybrid 0

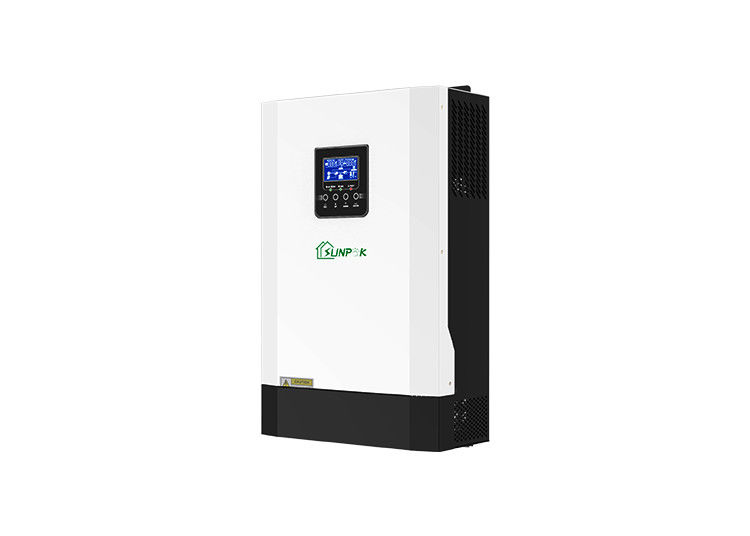

SUNPOK Off-Grid Off-Grid Inverter

Sunpok 5Kw single-phase high-frequency off-grid inverter is suitable for areas without power, nomadic areas, communication base stations, areas with unstable power, islands, border posts, scenic management offices, newsstands, battery packs for battery manufacturers, etc. Equipped with LED display, supports USB/RS232/RS485/Bluetooth/Dry-contact, compact design, and high-cost performance.



ModelMPS-3500HMPS-5500H
Rated Capacity3500W5500W
Peak Power3500VA5500VA
INPUT
Voltage230VAC
Selectable Voltage Range90-280VAC(for home appliances)
Frequency Range50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation (Batt.Mode)230VAC+5%
Surge power7000VA11000VA
Efficiency(Peak) PV to INV97%
Efficiency(Peak) BAT to INV94%
Transfer Time

10ms (for personal computers)
20ms(for home appliances)

Wave formPure Sine Wave
BATTERY & AC CHARGER
Battery Voltage24VDC48VDC
Floating Charge Voltage27VDC54VDC
Overcharge Protection31VDC61VDC
Maximum charge current80A80A
SOLAR CHARGER
MAX.PV Array Power5000W6000W
MPPT Range@ Operating Voltage120-500VDC
Maximum PV Array Open Circuit Voltage500VDC
Maximum Charging Current110A
Maximum Efficiency98%
PHYSICAL
Dimension.D*W*H(mm)472*298*129
Net Weight (kgs)9.5kg10.5kg
Communication Interface

RS485/RS232(Standard)
LCD remote/WIFI(Optional)

OPERATING ENVIRONMENT
Humidity5% to 95% Relative Humidity(Non-condensing)
Operating Temperature0°C to 55°C
Storage Temperature


-15°C to 60°C

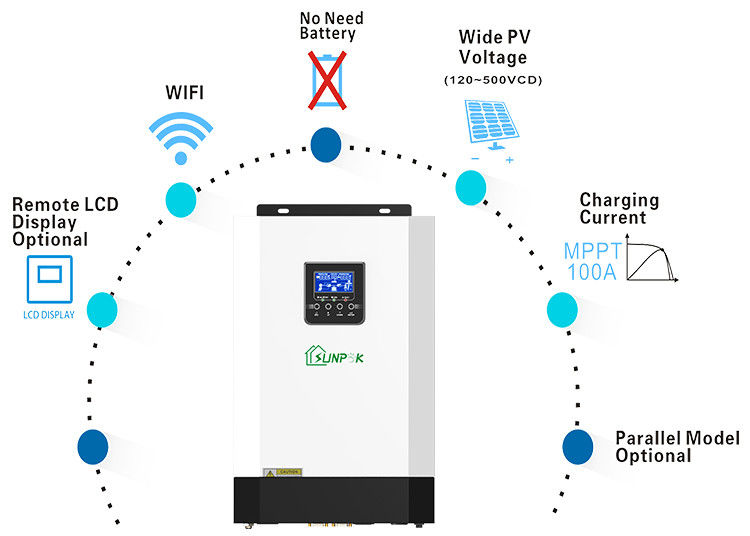

Solar Power Off Grid Inverter 24v 48v 3kw 5kva 6000w 10kw Hybrid 1


Features

Efficient power generation with higher income:

1.5 times overload output (200ms), resist the impact of instantaneous load

Wide voltage input range, early start and late stop, longer lasting power generation

Photovoltaic controller power upgrade can be connected to 5kW

MPPT has a wide voltage range and can adapt to various crystalline silicon components

Support mains bypass fast charging

Intelligent protection, simple operation, and maintenance:

Various gear charging voltages, adaptable to different batteries

Multiple working modes: photovoltaic priority/mains power priority/battery priority

LCD can be externally introduced to meet the monitoring needs of different customers

Non-linear loads can be connected

Safe and reliable, comprehensive peace of mind:

Diverse communication methods, support USB/RS232/RS485/Bluetooth/dry contact

Smart battery charger design to optimize battery performance

Mobile phone/computer intelligent monitoring, more convenient operation anytime and anywhere


FAQ
Question 1: What is the lead time?
Answer 1: We can deliver within 3-15 days.
Question 2: What is the warranty period, and how many years?
Answer 2: The warranty period for inverter is 2-5 years.
Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to overseas help our customers if necessary.
Question 4: How to become your agent?
Answer 4: Contact us through the website, email, or phone, and we can talk about details to confirm.
Question 5: Is the sample available and free?
Answer 5: The sample will be charged a cost, but the cost will be refunded after the bulk order.
Question 6: Do you support OEM/ODM?
Answer 6: Of course, we can do customized services for our partners.
If you have other questions, please add the contact information of our sales manager to understand, thank you!
