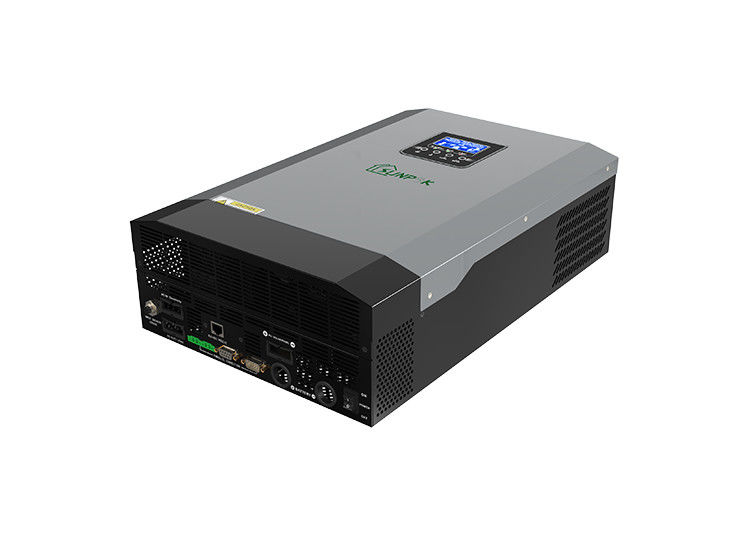

SUNPOK Inverter Spf 5kw Wifi Monitoring Off Grid Solar Inverte

SUNPOK Inverter Spf 5kw Wifi Monitoring Off Grid Solar Inverte

Place of Origin:

China

Brand Name:

SUNPOK

Certification:

CE MSDS UN38.3

Model Number:

MPS-3500H

Contact Us

Request A Quote
Product Details
Product Name:
230V 5Kw 48V Off Grid Inverter
Rated Power:
5KW
Output Waveform:
Prue Sine Wave
Display:
LCD
Battery Voltage:
48V
Type:
DC/AC Inverters
Warranty:
3 Years
OEM & ODM:
Avaiable
Inverter Efficiency:
>93%
Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
USD 454 /Pcs
Packaging Details
Carton
Delivery Time
5-10 Day
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 Unit Per Month
Product Description

Off-Grid Power Inverter Buying Guide [Energy Auditing Step-By-Step]
Are you fed up with rising energy prices and want to reduce your carbon footprint? If the answer is yes, then sunpok energy and the Off-Grid Power Inverter Buying Guide [Energy Auditing Step-By-Step] can help you with that.

Sunpok energy provides an informed and comprehensive guide to help you understand the basics of energy auditing and the steps to take in order to maximize your home’s energy efficiency. The Off-Grid Power Inverter Buying Guide [Energy Auditing Step-By-Step] will help you determine the type of inverter you need to achieve your energy efficient vision.

These guides are detailed in their description of the rules and considerations to keep in mind when selecting the right type of inverter for you, making them invaluable components of your energy saving regime. With sunpok energy and the Off-Grid Power Inverter Buying Guide [Energy Auditing Step-By-Step], you can save on time, money, and energy—achieving your green goals in no time!

If you’re looking to reduce your carbon footprint and get the most out of your investment in energy efficiency, then sunpok energy and the Off-Grid Power Inverter Buying Guide [Energy Auditing Step-By-Step] are just the thing you need. With their help, you can reduce your monthly energy costs and save the planet—all at the same time. Get your copy today and start reducing your home’s energy consumption—you’ll be glad you did!


SUNPOK Inverter Spf 5kw Wifi Monitoring Off Grid Solar Inverte 0


SUNPOK Off-Grid Off-Grid Inverter

Sunpok 5Kw single-phase high-frequency off-grid inverter is suitable for areas without power, nomadic areas, communication base stations, areas with unstable power, islands, border posts, scenic management offices, newsstands, battery packs for battery manufacturers, etc. Equipped with LED display, supports USB/RS232/RS485/Bluetooth/Dry-contact, compact design, and high-cost performance.



ModelMPS-3500HMPS-5500H
Rated Capacity3500W5500W
Peak Power3500VA5500VA
INPUT
Voltage230VAC
Selectable Voltage Range90-280VAC(for home appliances)
Frequency Range50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation (Batt.Mode)230VAC+5%
Surge power7000VA11000VA
Efficiency(Peak) PV to INV97%
Efficiency(Peak) BAT to INV94%
Transfer Time

10ms (for personal computers)
20ms(for home appliances)

Wave formPure Sine Wave
BATTERY & AC CHARGER
Battery Voltage24VDC48VDC
Floating Charge Voltage27VDC54VDC
Overcharge Protection31VDC61VDC
Maximum charge current80A80A
SOLAR CHARGER
MAX.PV Array Power5000W6000W
MPPT Range@ Operating Voltage120-500VDC
Maximum PV Array Open Circuit Voltage500VDC
Maximum Charging Current110A
Maximum Efficiency98%
PHYSICAL
Dimension.D*W*H(mm)472*298*129
Net Weight (kgs)9.5kg10.5kg
Communication Interface

RS485/RS232(Standard)
LCD remote/WIFI(Optional)

OPERATING ENVIRONMENT
Humidity5% to 95% Relative Humidity(Non-condensing)
Operating Temperature0°C to 55°C
Storage Temperature-15°C to 60°C



SUNPOK Inverter Spf 5kw Wifi Monitoring Off Grid Solar Inverte 1

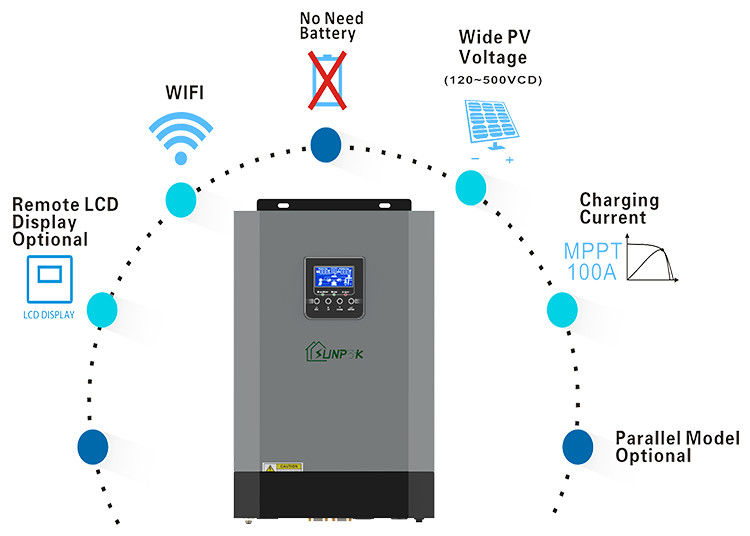

Features

Efficient power generation with higher income:

1.5 times overload output (200ms), resist the impact of instantaneous load

Wide voltage input range, early start and late stop, longer lasting power generation

Photovoltaic controller power upgrade can be connected to 5kW

MPPT has a wide voltage range and can adapt to various crystalline silicon components

Support mains bypass fast charging

Intelligent protection, simple operation, and maintenance:

Various gear charging voltages, adaptable to different batteries

Multiple working modes: photovoltaic priority/mains power priority/battery priority

LCD can be externally introduced to meet the monitoring needs of different customers

Non-linear loads can be connected

Safe and reliable, comprehensive peace of mind:

Diverse communication methods, support USB/RS232/RS485/Bluetooth/dry contact

Smart battery charger design to optimize battery performance

Mobile phone/computer intelligent monitoring, more convenient operation anytime and anywhere


FAQ
Question 1: What is the lead time?
Answer 1: We can deliver within 3-15 days.
Question 2: What is the warranty period, and how many years?
Answer 2: The warranty period for inverter is 2-5 years.
Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to overseas help our customers if necessary.
Question 4: How to become your agent?
Answer 4: Contact us through the website, email, or phone, and we can talk about details to confirm.
Question 5: Is the sample available and free?
Answer 5: The sample will be charged a cost, but the cost will be refunded after the bulk order.
Question 6: Do you support OEM/ODM?
Answer 6: Of course, we can do customized services for our partners.
If you have other questions, please add the contact information of our sales manager to understand, thank you!
