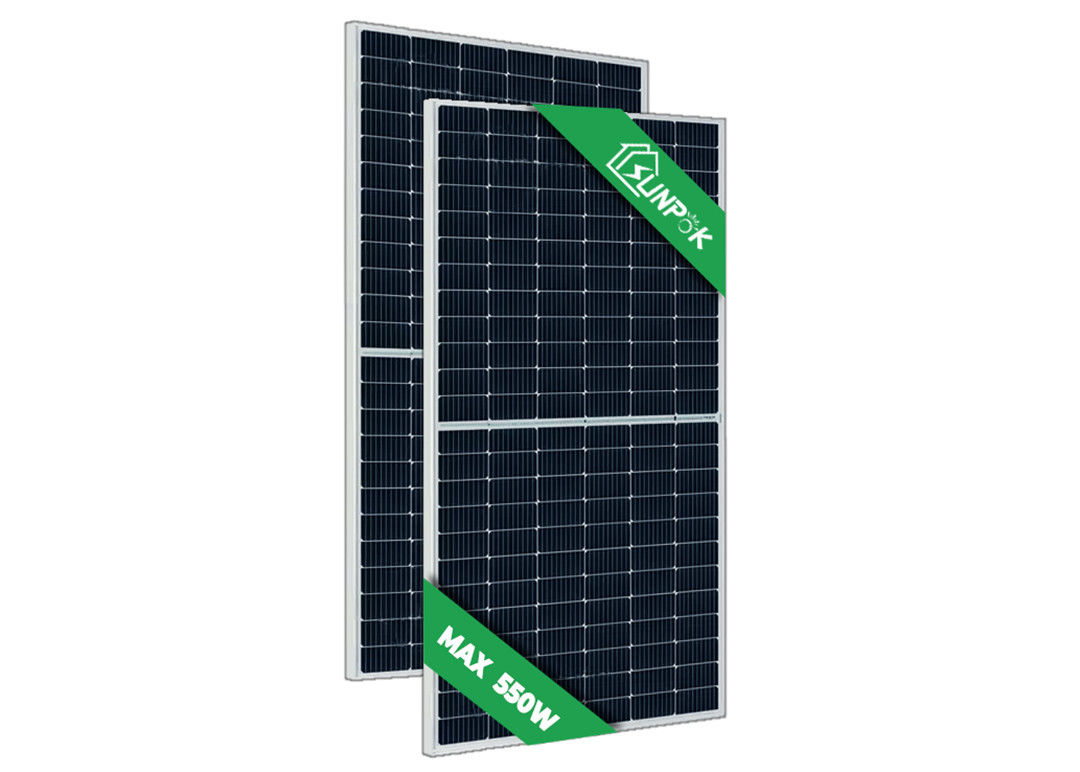

Black 450W 550W 600W Mono PV Panels Half Cell PV Module Silicon Solar Cells 12BB
| Place of Origin | China |
|---|---|
| Brand Name | SUNPOK |
| Certification | CE TUV Rohs |
| Model Number | NES144-6-450M |
| Minimum Order Quantity | 10 Pcs |
| Price | USD 128.5 / Pcs |
| Packaging Details | Carton / Wooden Box |
| Delivery Time | 5-10 Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 60000 Pcs Per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | PERC, Half Cell, All Black | Solar Cell | 144 Cell |
|---|---|---|---|
| Junction Box | IP67 Rated | Color | Black |
| Frame | Aluminum Alloy | Warranty | 25 Years Warranty |
| Cells | 158.75/166/182/210mm | OEM Order | Acceptable |
| Highlight | Mono PV Panels 600W,12BB monocrystalline silicon solar cells,550W Half Cell PV Module |
||
Product Description
Hot Sell Black 450W 550W 600W Half Cell PV Module Mono Solar Panel 12BB
What is the Difference Between Mono Solar Panels and Poly Solar Panels in Service Life?
Both types of solar panels have two warrantees, a physical warranty and an efficiency warranty. The physical warranty is generally 15 to 30 years and covers any physical damage. The efficiency warranty is 20 to 30 years and concerns the efficiency of solar panels after 25 years. Thus, an 80% efficiency warranty after 25 years means that the panels will produce 80% of the electricity they produced in their first year after 25 years. Although they produce less energy, the panels still work very well.
That said, the duration of warranties varies by the manufacturer rather than panel technology. It is up to you to choose the manufacturer offering the best warranties.
Main Parameters of Sunpok Mono PV Panels
| Electrical Characteristics | |||
| Model | NES144-6-450M | NES132-7-500M | NES144-7-550M |
| Maximum Power(Pmax) | 450W | 500W | 550W |
| Optimum Operating Voltage(Vmp) | 41.00V | 38.35V | 41.96V |
| Optimum Operating Current(Imp) | 10.98A | 13.04A | 13.11A |
| Open Circuit Voltage(Voc) | 49.50V | 45.59V | 49.90V |
| Short Circuit Current(Isc) | 11.42A | 13.93A | 14.00A |
| Module Efficiency | 20.70% | 20.37% | 21.28% |
| Operating Module Temperature | -40 ℃ to +85 ℃ | ||
| Maximum System Voltage | 1500V DC (IEC) | ||
| Power Tolerance | 0~+5W | ||
| STC | irradiance 1000 W/m2, module temperature 25oC, AM=1.5; Best in Class AAA solar simulator (IEC 60904-9) used | ||
| Mechanical Characteristics | |||
| Solar Cell | 166mm 9BB Monocrystalline silicon cells | ||
| No. of Cells | 144(6x12x2) | ||
| Dimensions | 2094x1038x35mm；2108x1048x35mm | ||
| Weight | 24.5kg | ||
| Front Glass | 3.2mm(0.13 inches) tempered glass | ||
| Frame | Anodized aluminum alloy | ||
| Junction Box | Ip67 rated | ||
| Output Cables | 4.0 mm 2 (0.006 inches 2 ), 300mm/Customized | ||
| Connectors | MC4 connectors | ||
| Temperature Characteristics | |||
| NOCT | 45±2 ℃ | ||
| Temperature Coefficient of Pmax | -0.380%/ ℃ | ||
| Temperature Coefficient of Voc | -0.300%/ ℃ | ||
| Temperature Coefficient of Isc | 0.060%/ ℃ | ||
| Packing Configuration(35mm) | |||
| Per Pallet | 30Pieces | ||
| Per Container (20' GP) | 282Pieces | ||
| Per Container (40' HQ) | 704Pieces | ||
Sunpok Mono PV Panels Production Plant and Packaging
FAQ
Question 1: What is the lead time?
Answer 1: We can deliver within 3-15 days.
Question 2: What is the warranty period, and how many years?
Answer 2: The warranty period for mono PV panels is 10-25 years.
Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to overseas help our customers if necessary.
Question 4: How to become your agent?
Answer 4: Contact us through the website, email, or phone, and we can talk about details to confirm.
Question 5: Is the sample available and free?
Answer 5: Sample will be charged a cost, but the cost will be refunded after the bulk order.
Question 6: Do you support OEM/ODM?
Answer 6: Of course, we can do customized services for our partners.
If you have other questions, please add the contact information of our sales manager to understand, thank you!
